This is for a previously used commercial set of electric bike wheel

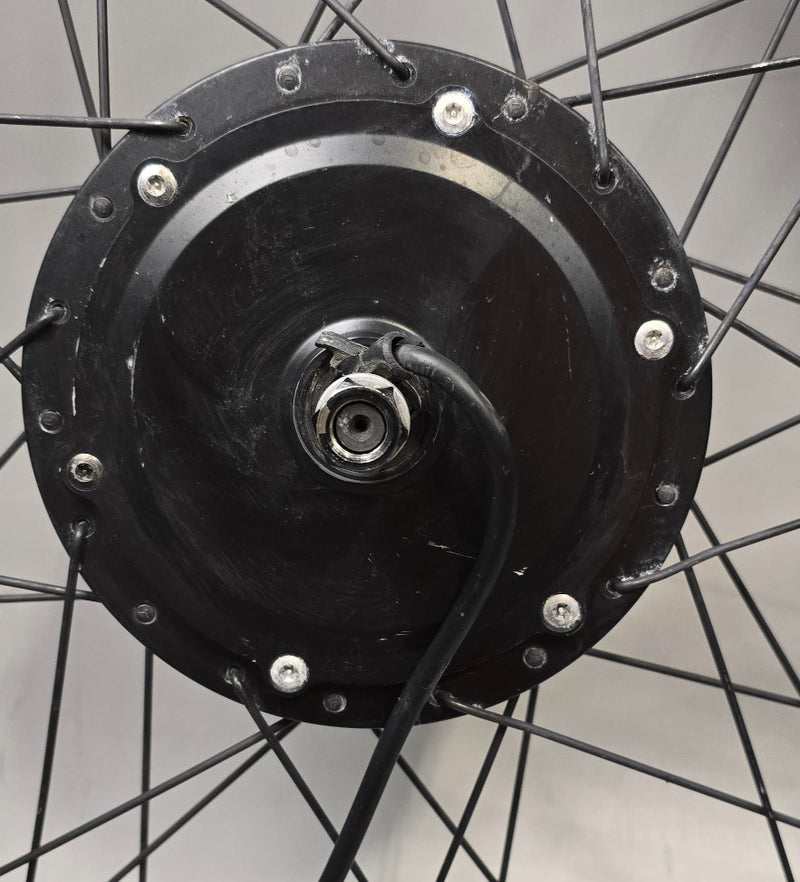

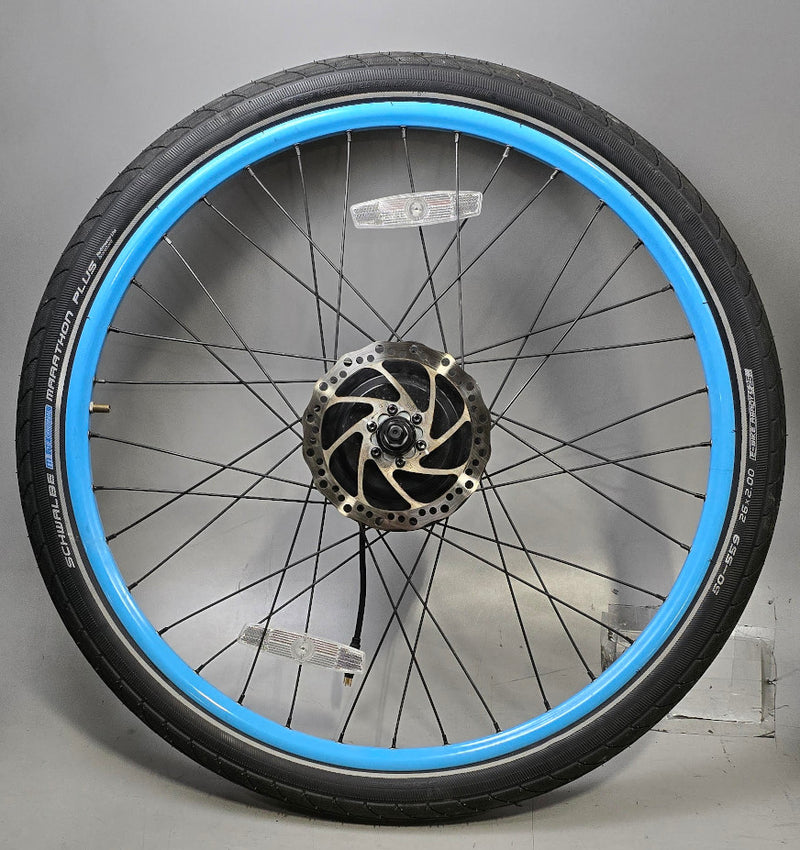

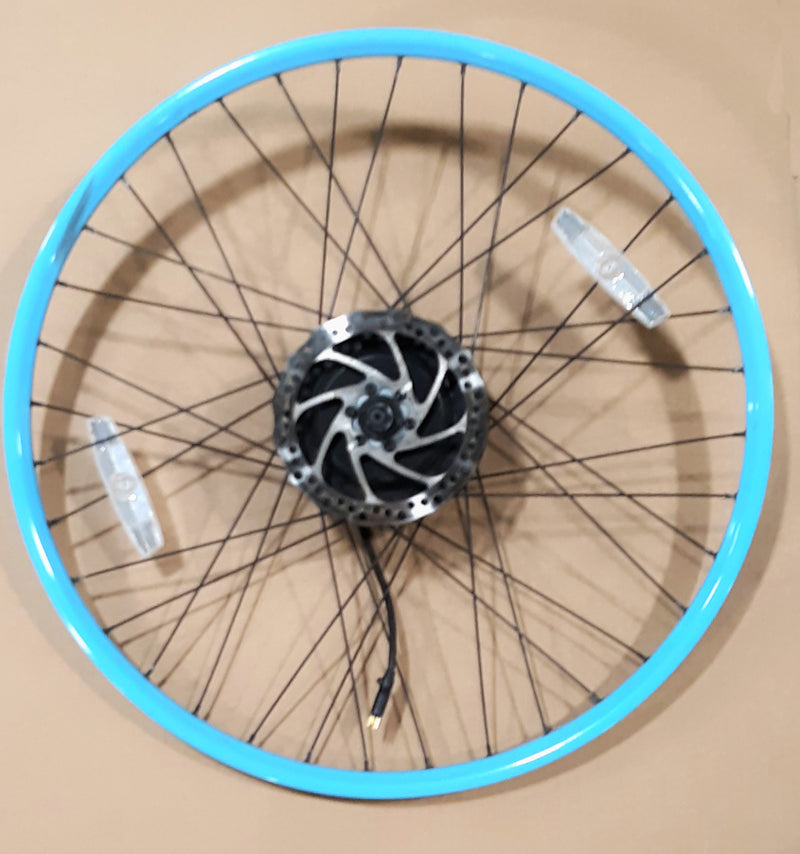

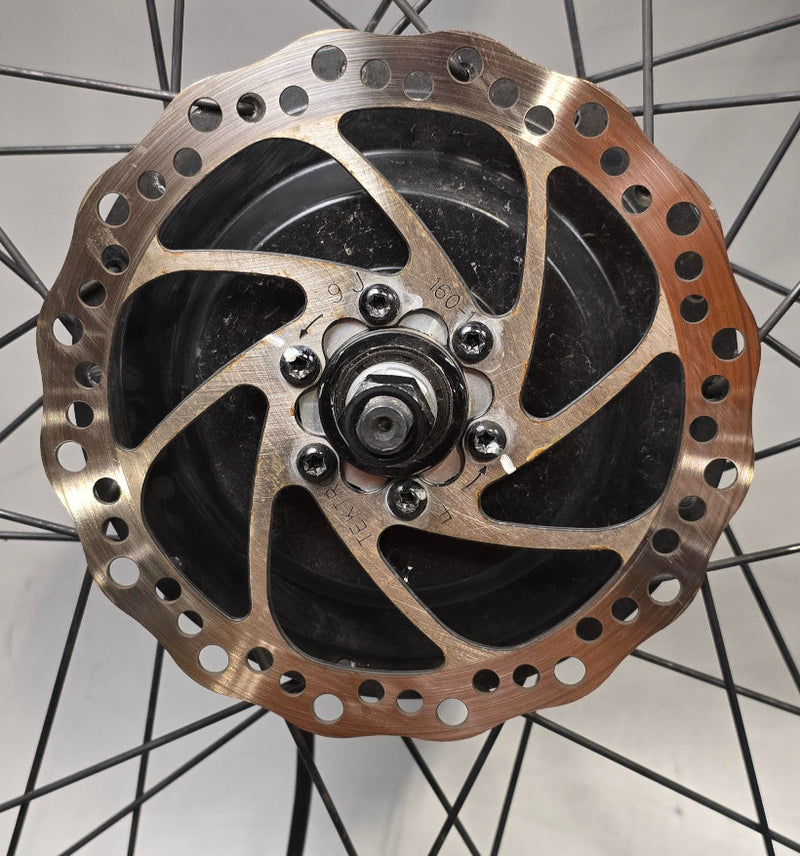

Listing is for 1 BAFANG DC36V - 26" Front wheels/Hub with 1 Tektro disk break and 6 screws on front tires.
Batteries and Controllers are not included.. The wheels have good tires, but the tubes might need to be replaced. (tire size/brand can vary)
There might be some cosmetic blemishes and are offered as is. They have been used in a commercial application and are high quality parts.
Additional parts and wiring will be required make use these in your project. It does not include the battery or controllers.
Engine Model - FM G020.250/350.D 10

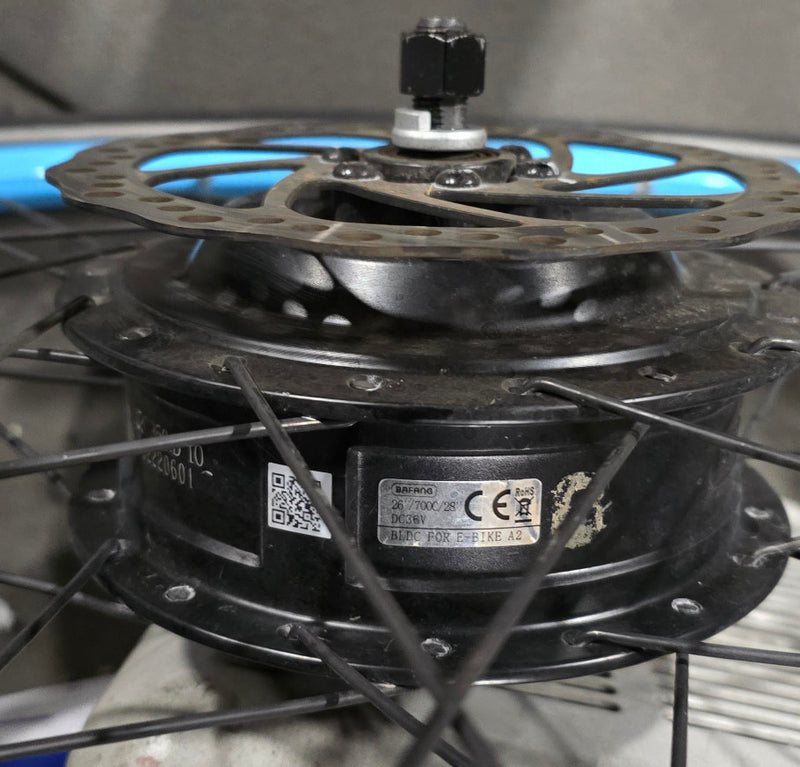

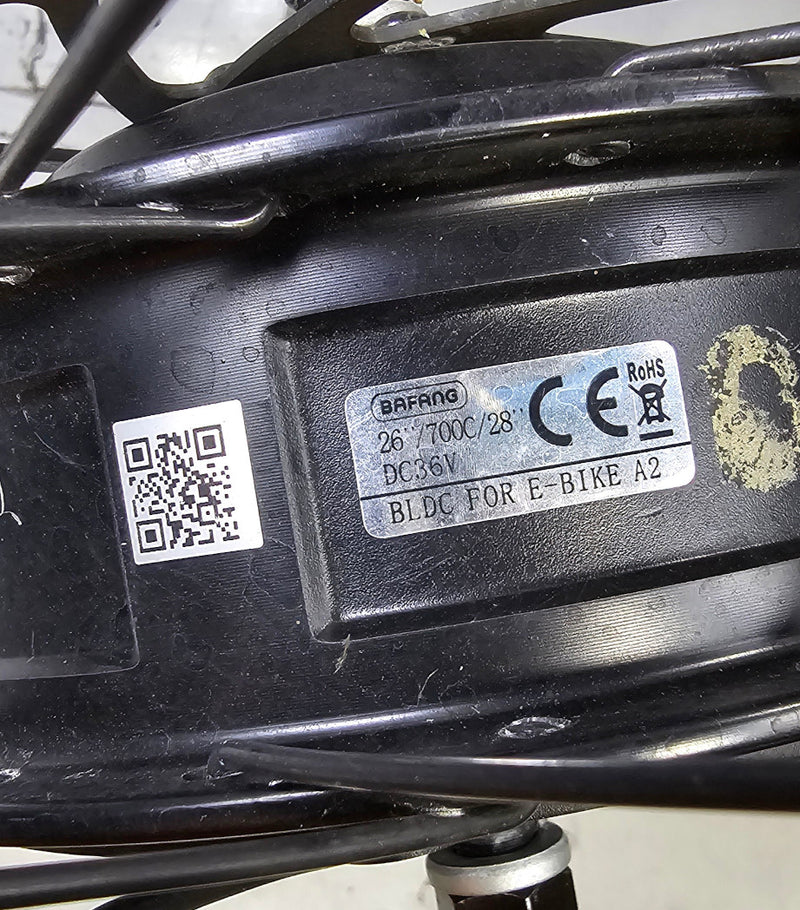

BAFANG DC36V BLDC A2 Specs
- Position Front Motor
- Construction Gear drive
- Rated Voltage (DCV) 36
- n0 (Rpm) 325 ; 245
- Rated Power (W) 250/350
- nT(Rpm) 205
- Max Torque 45 N.m
- Efficiency (%) ≥ 80
- Weight (kg) 3.3
- Noise Grade (dB) < 55
- Operating Temperature -20-45℃
- Mounting Parameters
- Brake Disc Brake
- Installation Widths (mm / OLD) 100
- Max. Housing Diameter (mm) 158
- Cabling Route Shaft Side, Right

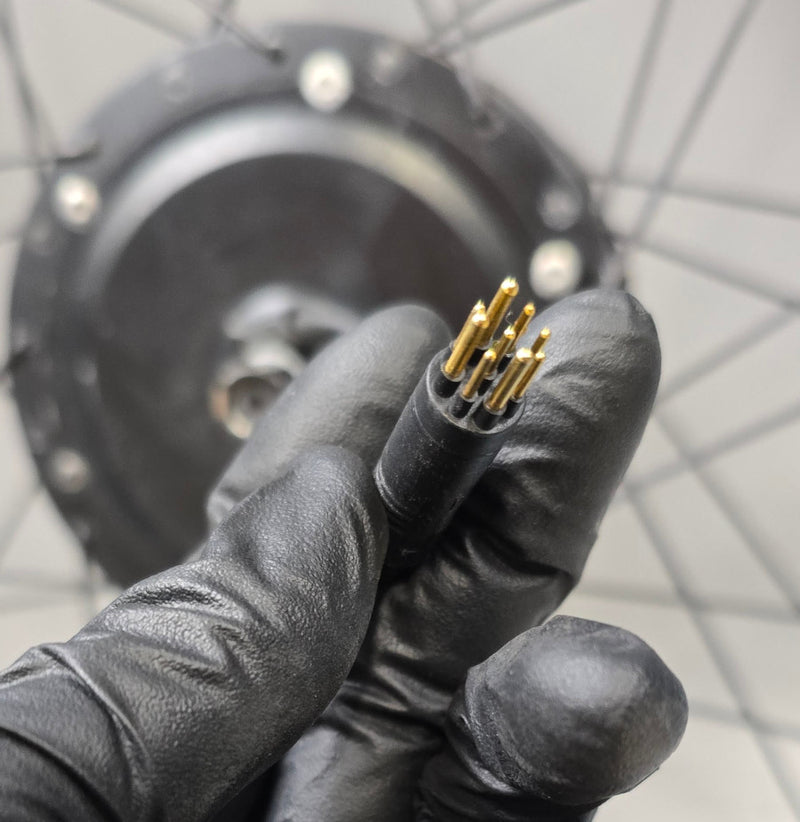

- Cable Length(mm), Connection Type 250 G9.1
- Spoke Specification 36H*13G
- Further Specifications
- Speed Detection Signal (Pulses/Cycle) 6
- Reduction Ratio 1:5
- Magnet Poles (2P) 20
